VENTS - SPEED CONTROLLER RS1400
Recalculation in progress …

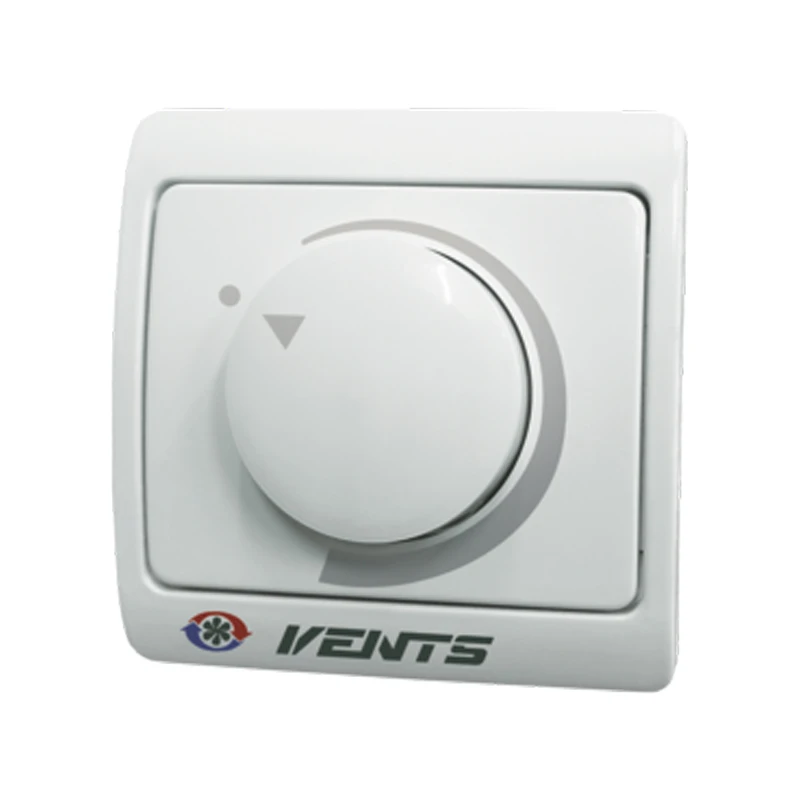

The RS-1-400 speed controller from Vents is applied in ventilation systems for switching on/off and speed control of single-phase power-controlled motors.
Several fans can be controlled synchronously if their total current does not exceed the controller's current limit.
The controller incorporates a removable thermal fuse for motor overload protection and a transient filter.
Mounting

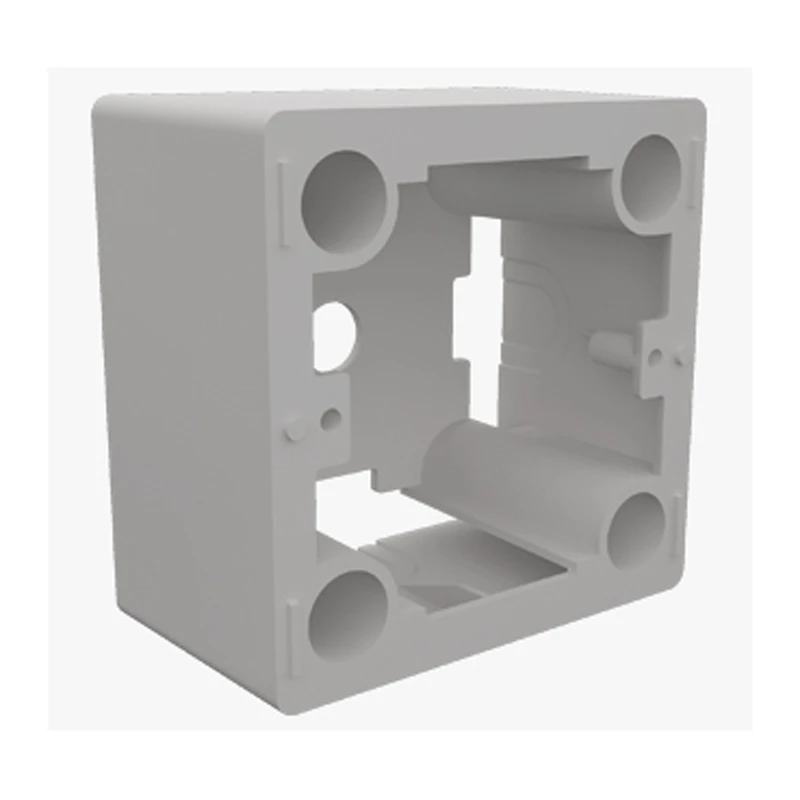

The controller is designed for indoor mounting in special surface mount (MKN-3) or flush mount (MKV-4) junction boxes (to be ordered separately) or in standard round electrical junction boxes.
Several fans can be controlled synchronously if their total current does not exceed the controller's current limit.
The controller incorporates a removable thermal fuse for motor overload protection and a transient filter.
RS-1-400 speed controller features:
- The controller casing is made of plastic.
- The controller is characterised by high efficiency and control precision.
- Switching to maximum speed is done by turning the control knob.
- The control starts from minimum to maximum voltage for stable fan operation.
- The minimum speed is set via the potentiometer on the PCB.
Mounting
The controller is designed for indoor mounting in special surface mount (MKN-3) or flush mount (MKV-4) junction boxes (to be ordered separately) or in standard round electrical junction boxes.
Technical Specifications Speed Controller RS-1-400:
- Voltage 230 v
- Current 1.8 UN
- Total dimensions LxWxH 78x78x63 mm
- Maximum ambient temperature 35 °С
- Phase 1
- Housing material plastic
- Degree of protection IP40
- Mass 0.11 kg
The RS-1-400 speed controller from Vents is designed for mounting inside special surface mount junction boxes such as the MKN-3.
