VANGUARD - TT100 BI-POWER CABLED WITH SWITCH | 145-187mc/h Ø100mm
Cod. 632095
Brand: VDL

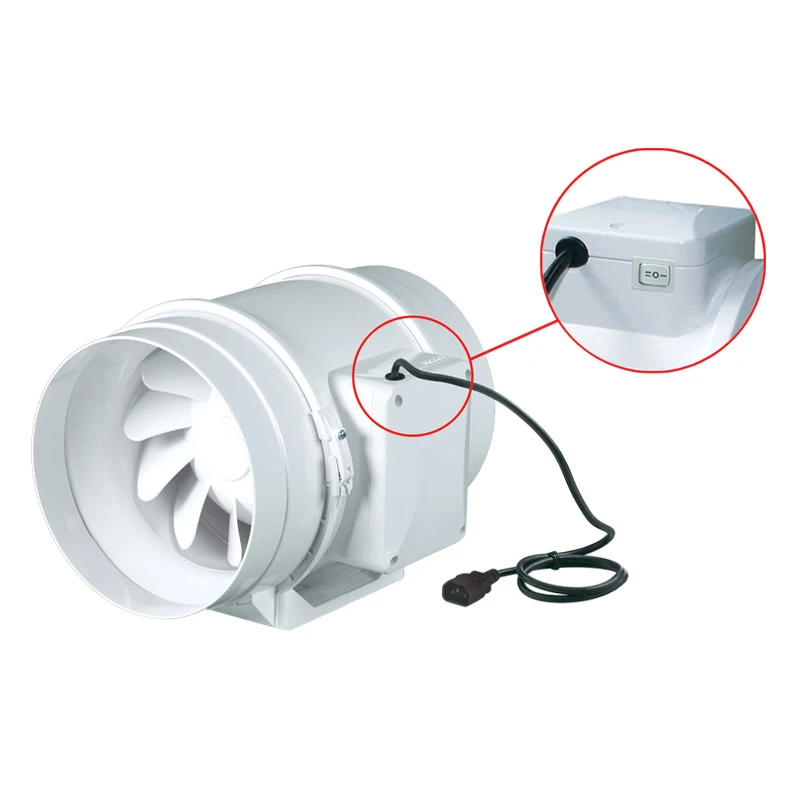

The Vanguard TT extractor is a range of inexpensive extractors perfect for small growboxes. They arrive already wired, so we avoid connection problems, with a durable, quality cable. They have a...
Standard price
€53,92 VAT included(22%)
Recalculation in progress … The Vanguard TT extractor is a range of inexpensive extractors perfect for small growboxes. They arrive already wired, so we avoid connection problems, with a durable, quality cable. They have a button to adjust the two speeds, so it is quick and easy to adjust them.
It has 2 speeds, making it ideal for extractions/intentions of grow cabinets. The ideal air temperature range is 26-28 degrees, which ensures vigorous and healthy plant growth, as too high a temperature will cause plants to stop growing.
It has a wall mounting system that will allow you to take it apart easily without unscrewing it to clean it. It is one of the quietest on the market.Maintenance

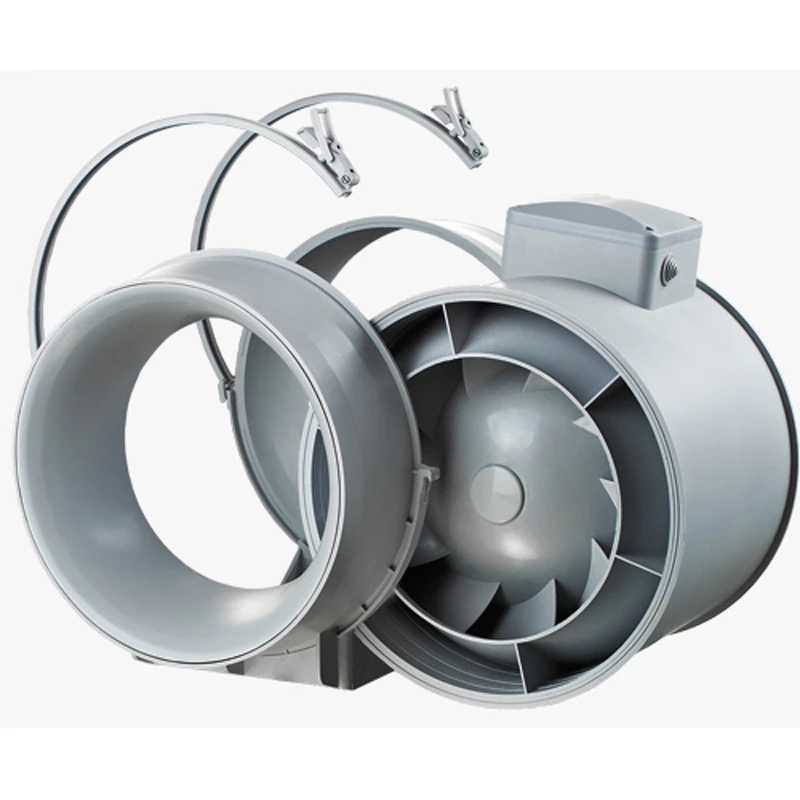

The removable impeller and the motor block with terminal box are fixed to the assembled casing by means of special clamps with latches. This makes maintenance of the fan quick and easy. Maintenance of the fan does not require total disassembly. Simply remove the central block from the casing and perform the required maintenance.
Mounting
The fans are suitable for mounting in any corner and point of the system. Several fans can be installed within one system.
Two mountings are possible:

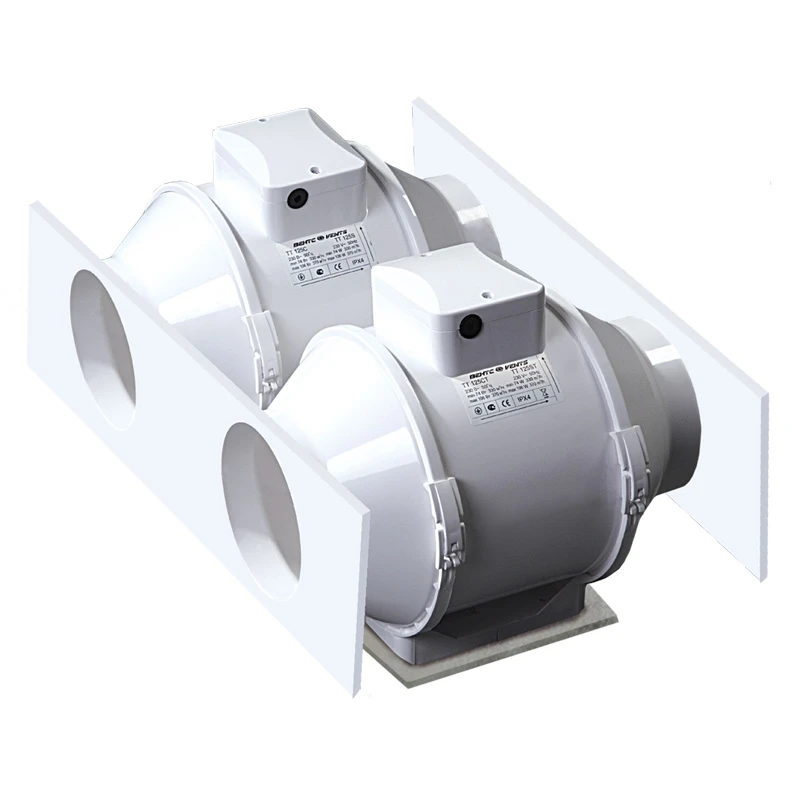

- parallel mounting to increase air flow;

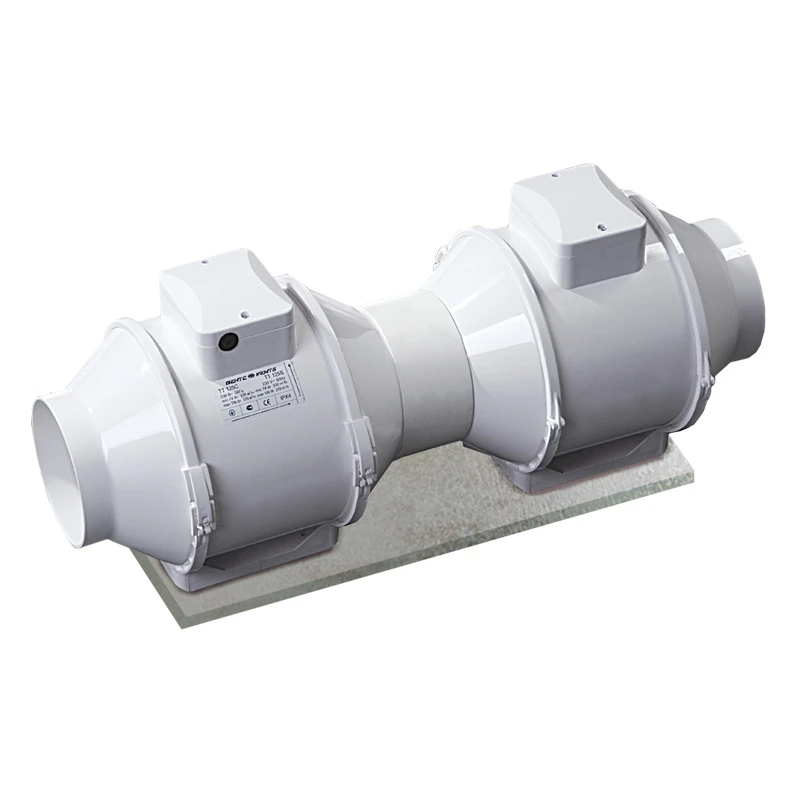

- series mounting to increase the operating pressure;
Vanguard TT100 features:
- Speed Two
- Model TT
- Maximum flow rate 187mc/h
- Minimum flow 145mc/h
- Inlet diameter (mm) 100
- Consumption at minimum speed (W) 21
- Max. revolutions 1680
- Min. revolutions 1950
- Dimensions (mm) 167x246x190mm
- Consumption (W) 33
-
246x167x190 cm (WxLxH)
-
