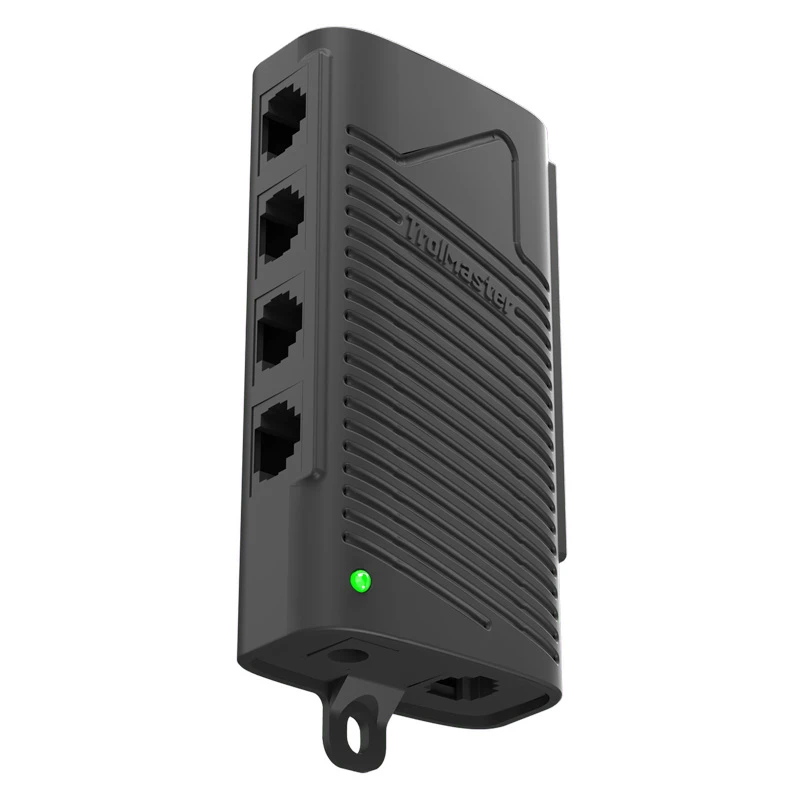

TROLMASTER - HUB SPLITTER RJ12
TrolMaster's SPH-1 splitter hub makes the installation of our controllers as easy as plugging in a telephone cable. The SPH-1 hub uses a single RJ12 cable input jack and provides (8) individual RJ12...
Recalculation in progress … TrolMaster's SPH-1 splitter hub makes the installation of our controllers as easy as plugging in a telephone cable. The SPH-1 hub uses a single RJ12 cable input jack and provides (8) individual RJ12 output jacks that can be connected to various TrolMaster sensors, adapters and device modules.The use of the SPH-1 allows for a 'clean' installation and eliminates the need to use daisy-chain Y-splitters to interconnect multiple modules or sensors.
The SPH-1 is also a powered hub, which means it will increase the signals passing through the SPH-1 allowing more modules, sensors and light adapters to be connected to TrolMaster controllers.Using the SPH-1, an almost unlimited number of LED / HID lights can be controlled using a single TrolMaster controller. The SPH-1 comes complete with the SPH-1 hub, a 16ft RJ12 cable and 12vdc power supply.

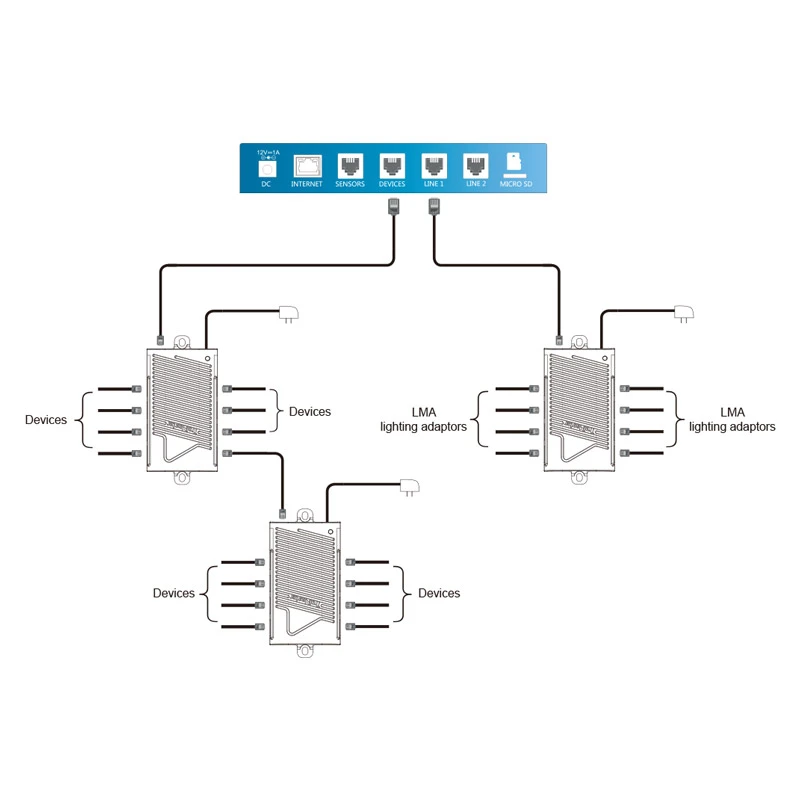

The SPH-1 can be positioned in a central location with a single RJ12 cable connecting it to the main controller. From the SPH-1 hub, individual RJ12 jacks can be connected to each of the sensors, device modules or lighting adapters.
Features TrolMaster's RJ12 Hub Splitter:
- Led indicator
- Plug'n'play
TrolMaster's RJ12 Splitter Hub Specifications:
- Input voltage: 12VDC
- Maximum current: 1 A.
- Working environment: temperature 32-122°F, humidity = 90%
- Packaging dimensions: 160 mm (W) x 86 mm (L) x 90 mm (H)
Package contents:
- 1 x Hub Splitter RJ12
- 1x 12V power adapter
- 1x 120 cm RJ12 cable
-
