GSE - FANCONTROLLER 16A 4-WAY TEMPERATURE, HUMIDITY AND TIMER WITH USB

Name: GSE - FANCONTROLLER 16A 4-WAY TEMPERATURE, HUMIDITY AND TIMER WITH USB
Brand: GSE - G SYSTEMS ENGINEERING
SKU: FC20216EUUSB
Price: 468.85 EUR
Availability: InStock

Cod. FC20216EUUSB

Brand: GSE - G SYSTEMS ENGINEERING

Gse's 16A Fan Controller consists of a very robust aluminium housing. It can control up to 2200 W of power per socket. In addition to conventional variable control of temperature and humidity, the...

Standard price

€468,85 VAT included(22%)

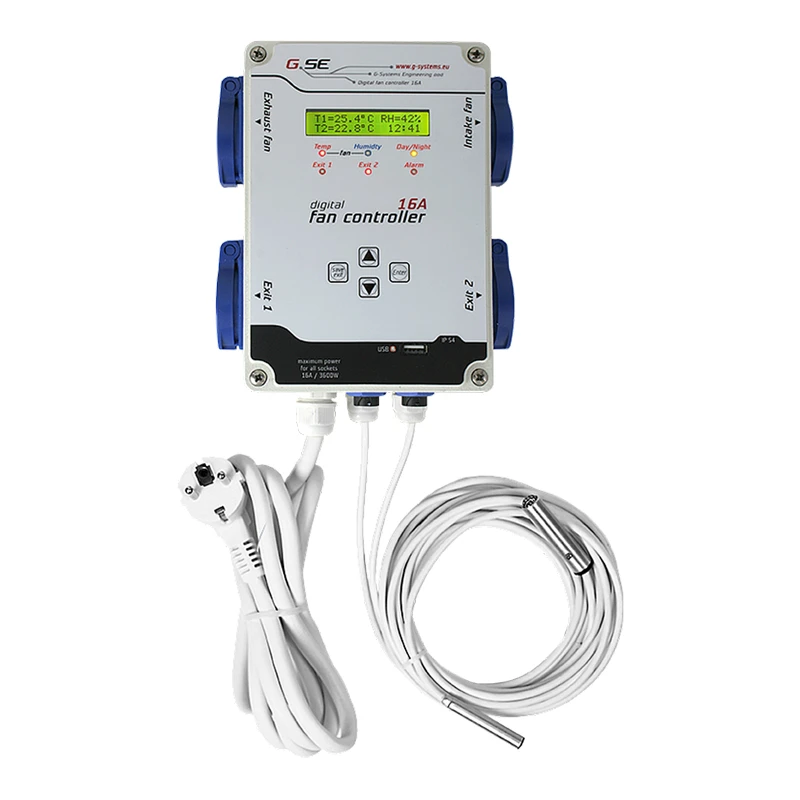

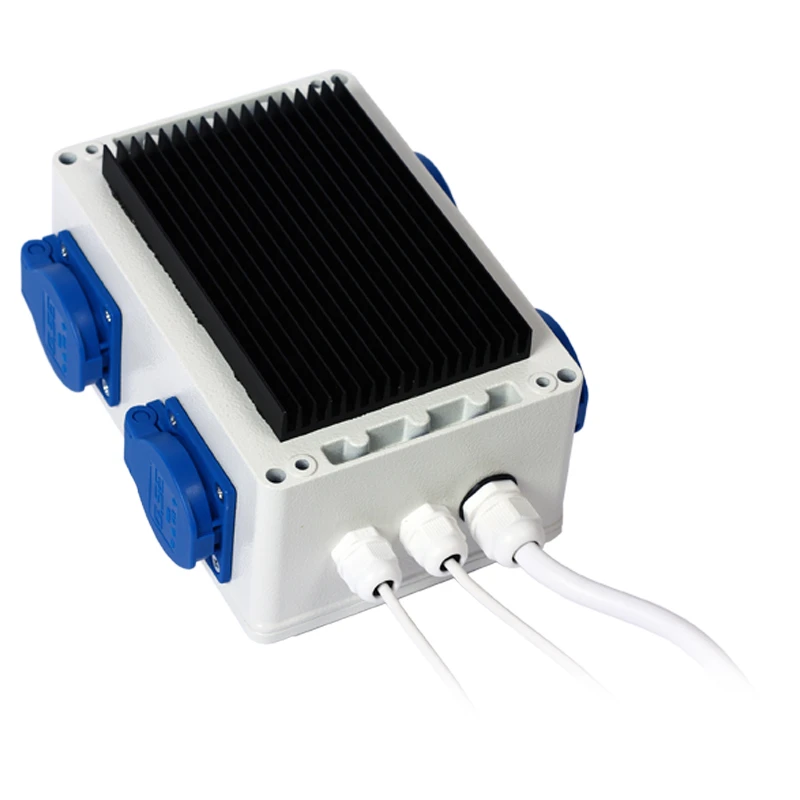

Gse's 16A Fan Controller consists of a very robust aluminium housing. It can control up to 2200 W of power per socket. In addition to conventional variable control of temperature and humidity, the 16A controller has 2 individually programmable output sockets.These can be assigned to one of the two sensors or be controlled by a timer function. Particularly interesting is the huge number of parameters that can be set individually by day/night to meet all desired requirements.

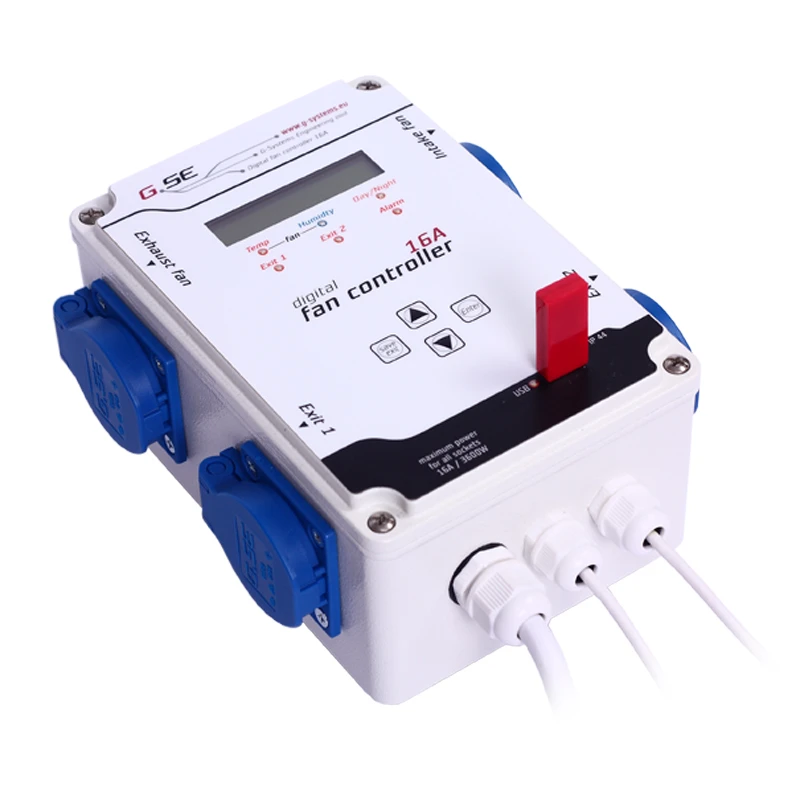

Depending on the version, the controller is equipped with a USB port for data logging. All relevant measurement data and control signals are written to a CSV file on the USB stick, which can then be evaluated in an Excel application. The optional socket for the EC fan output provides 2 x 0-10 V or PWM (pulse width modulation) signals with Chogori socket (includes 2 Chogori connectors with 4 m cable for your EC fans).The 16A controller has a free slot for a pressure sensor to control the intake air fan according to the pressure difference. The device has a 2x16A protection fuse, which is considered the maximum permissible load for the entire controller. Each individual output can carry max. 2'200W per socket and all outputs together have a max. load of 3'600W/16A.

The device is supplied with a 2 m connection cable for connection to a conventional 230 V/16 A household socket. The sensors are supplied with a 4 m long cable. A digital display and four navigation buttons provide easy menu navigation, and 6 LED lights indicate the current switching status. Among other things, settings such as display functions, memory frequency and languages, English, German, French, Spanish and Italian, can be selected.

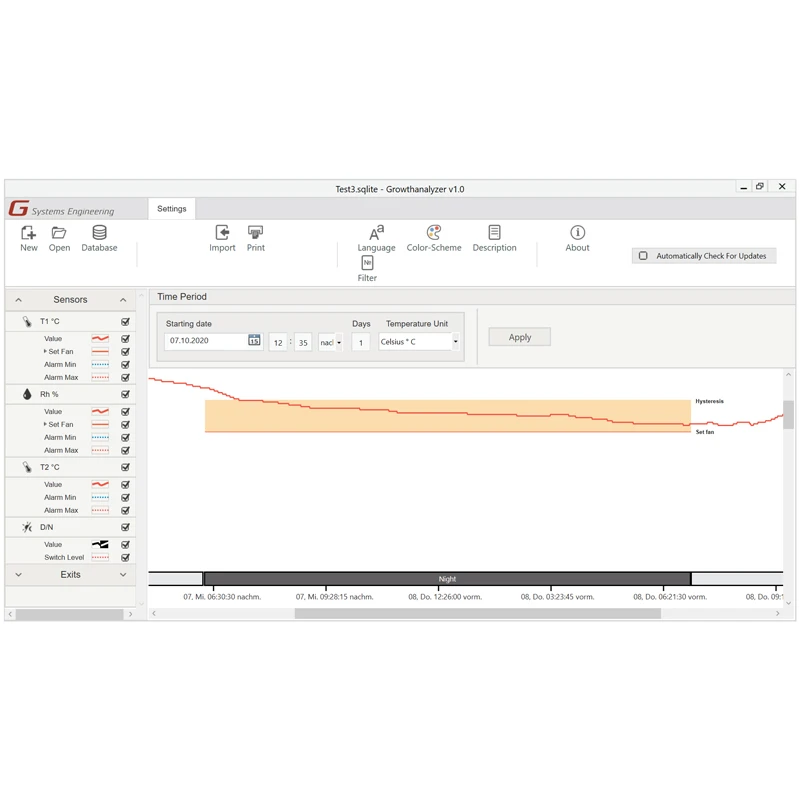

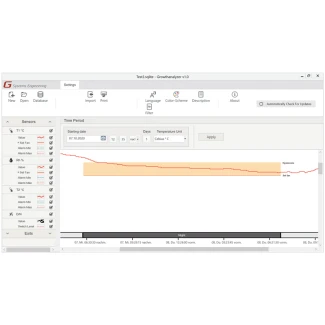

The USB version records all data such as settings and measurements on the USB stick as a .csv file. This file can be analysed with the Gse software or any other software such as OpenOffice-Calc, MS-Excel etc.
