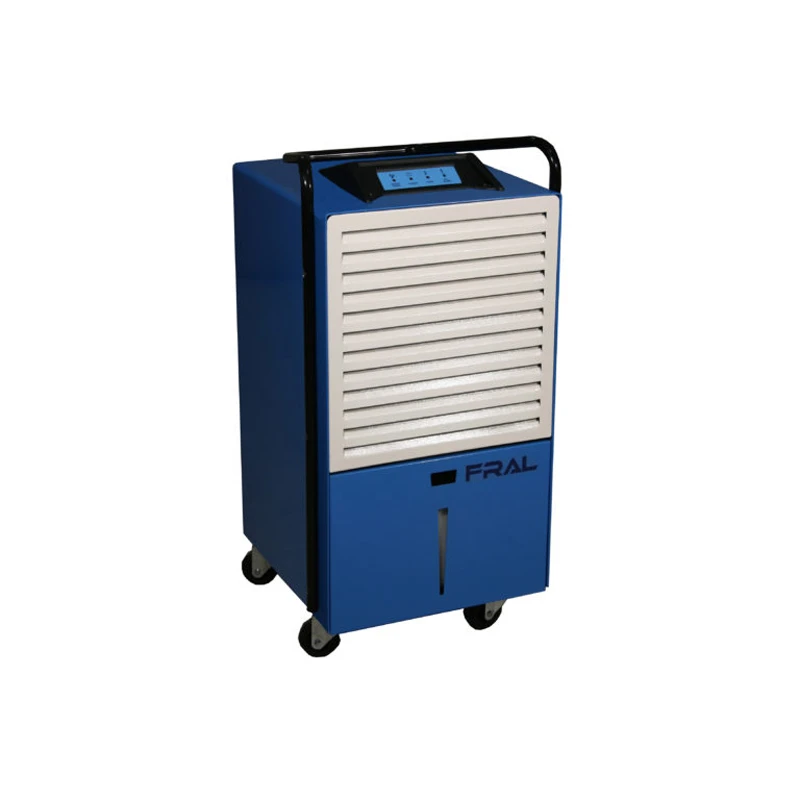

FRAL - PROFESSIONAL DEHUMIDIFIER FOR DRYING VEGETABLES FDND33 | 33 L/day 380mc/h
Cod. FDND33
Brand: FRAL DEUMIDIFICAZIONE
The Fral professional portable dehumidifiers FDNF - FDND series are high performance appliances, they have a strong galvanised sheet metal structure painted with epoxy resins, mounted on 4 pivoting...
Standard price
€792,94 VAT included(22%)
The Fral professional portable dehumidifiers FDNF - FDND series are high performance appliances, they have a strong galvanised sheet metal structure painted with epoxy resins, mounted on 4 pivoting wheels that make them easy to move. They have a washable and easily replaceable high-efficiency polyurethane filter and a very large condensate collection tray with the possibility of direct drainage. Instead of the tray, it is possible to install a condensate lifting pump that allows the condensate to be pumped up to a height of 3.5 m from the machine's positioning level.
A fundamental characteristic of all professional portable Fral FDNF - FDND series models is the evaporation coil consisting of smooth aluminium tubes (with the exception of the ECO model). This exclusive device derived from professional dehumidifiers allows a lower energy consumption of the device with a very high efficiency even at low relative humidity. All models are fitted with an hour counter and Hot Gas defrosting (ECO excluded).
STRUCTURE
The structure and sheet metal are hot-dip galvanised, then epoxy powder coated, guaranteeing high resistance and long life. COMPRESSOR The compressor is of the rotary type, mounted on vibration dampers.
REFRIGERANT CIRCUIT
Evaporator: the coil has smooth aluminium tubes. The smooth tubes guarantee a high performance of the dehumidifier, considerably reducing energy consumption even at low relative humidity. The evaporator of the ECO model is made of copper tubes and aluminium fins. Condenser: the coil is made of copper tubes and aluminium fins. The wide pitch of the condenser fins ensures dust resistance, long life and easy maintenance.
CONDENSATE COLLECTION CONTAINER
The condensate collection container is very capacious and fitted as standard, easily removable, the machine is also prepared for connection to the fixed condensate drain.
CONDENSATE LIFTING PUMP
Optional in all versions, it replaces the condensate collection container and allows condensed water to be expelled up to a height of 3.5 m from the machine position. Equipped with an alarm to block the dehumidifier in case of pump malfunction. Alternatively, a condensate lifting pump kit is available, which can be easily fitted outside the dehumidifier, equipped with a malfunction alarm and machine blockage.
FAN
Axial type, statically and dynamically balanced, durable and long lasting.
AIR FILTER
Made of polyurethane, the air filter is washable and easily replaceable. High-efficiency filter.
MICROPROCESSOR
Controls Hot Gas defrost cycles, compressor timer and alarm board.
CONTROL PANEL
Located in the upper part of the machine. Carried out in accordance with current European standards.
TESTING
Refrigerant circuit leakage tests, electrical discharge tests and functional testing are carried out.
A fundamental characteristic of all professional portable Fral FDNF - FDND series models is the evaporation coil consisting of smooth aluminium tubes (with the exception of the ECO model). This exclusive device derived from professional dehumidifiers allows a lower energy consumption of the device with a very high efficiency even at low relative humidity. All models are fitted with an hour counter and Hot Gas defrosting (ECO excluded).
STRUCTURE
The structure and sheet metal are hot-dip galvanised, then epoxy powder coated, guaranteeing high resistance and long life. COMPRESSOR The compressor is of the rotary type, mounted on vibration dampers.
REFRIGERANT CIRCUIT
Evaporator: the coil has smooth aluminium tubes. The smooth tubes guarantee a high performance of the dehumidifier, considerably reducing energy consumption even at low relative humidity. The evaporator of the ECO model is made of copper tubes and aluminium fins. Condenser: the coil is made of copper tubes and aluminium fins. The wide pitch of the condenser fins ensures dust resistance, long life and easy maintenance.
CONDENSATE COLLECTION CONTAINER
The condensate collection container is very capacious and fitted as standard, easily removable, the machine is also prepared for connection to the fixed condensate drain.
CONDENSATE LIFTING PUMP
Optional in all versions, it replaces the condensate collection container and allows condensed water to be expelled up to a height of 3.5 m from the machine position. Equipped with an alarm to block the dehumidifier in case of pump malfunction. Alternatively, a condensate lifting pump kit is available, which can be easily fitted outside the dehumidifier, equipped with a malfunction alarm and machine blockage.
FAN
Axial type, statically and dynamically balanced, durable and long lasting.
AIR FILTER
Made of polyurethane, the air filter is washable and easily replaceable. High-efficiency filter.
MICROPROCESSOR
Controls Hot Gas defrost cycles, compressor timer and alarm board.
CONTROL PANEL
Located in the upper part of the machine. Carried out in accordance with current European standards.
TESTING
Refrigerant circuit leakage tests, electrical discharge tests and functional testing are carried out.
Technical specifications FDNP96:
- Rated average power input (27 ºC - 60% R.H.) 380 W
- Maximum power input (35 ºC - 70% R.H.) 480 W
- Maximum power consumption (35 ºC - 70% R.H.) F.L.A. 2.3 A
- Inrush current L.R.A. 8.5 A
- Air flow rate 380 mc/h
- Sound pressure level (3 metres free field) 43 db (A)
- Refrigerant R290
- Condensate container capacity 8 kg
- Connection on machine for condensate drain 3/4"
- Operating range (temperatures) 1÷35 °C
- Operating range (relative humidity) T < 30 °C 30÷93%
- Operating range (relative humidity) T 30÷32 °C 30÷90%
- Operating range (relative humidity) T 32÷35 °C 30÷70%
- Width 350 mm
- Height 700 mm
- Depth 370 mm
- Weight 31.5 kg
-
35x37x70 cm (WxLxH)
-
1
-
380W
-
500
-
380
-
1,4
